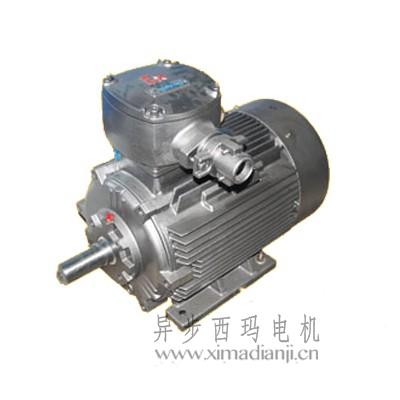

YBX3系列高效率防爆电机(380V)

YBX3系列高效率防爆电机简介
      YBX3系列高效率防爆电机为高效率隔爆型三相异步电动机,是西玛公司自行研制开发的全封闭、自扇冷、鼠笼式、高效率隔爆型三相异步电动机的基本系列。其效率符合GB18613-2012《中小型三相异步电动机能效限定值及能效等级》中的2级能效.

电机优势
该系列电机性能优良、使用安全可靠、振动噪音比同类产品低,符合环保要求。

应用领域
    适用于具有爆炸性环境的1区、2区危险区域。可应用在石油化工、煤矿、矿山、港口、电厂、机械工业等不同行业,用于驱动各种通用机械,如风机、压缩机、给水泵、破碎机、卷扬机、离
心机、切削机床、运输机械等,是最理想的驱动设备.

 基本特征
1. 机座号 :80~400
2. 功率范围:0.75kw~560kW
3. 电 压:380V, 660V, 380/660V, 400V, 690V, 400V/690V
4. 频 率:50Hz、60Hz
5. 极 数:2P~16P
6. 热 分 级:155(F)
7. 温升限值:80K(B级)、105K(F级)(每个机座号、每个极数最大一档功率)
8. 振动速度:2.3mm/s
9. 效率:2级能效。符合GB30254-2013《高压三相笼型异步电动机能效限定值及能效等级》
能效2级。
10. 冷却方式:IC411
11. 安装方式:IMB3(也可做成IMB35、IMV1)
12. 防护等级:IP55
13. 运行方式:S1
14. 防爆级别:ExdⅠMb、Exd ⅡB T4 Gb Exd ⅡC T4 Gb
15. 3kw及以下电压380V为Y接法,3kw及以上电压为∆接法。
16. 环境:温度-20~+40℃、海拔高度不高于1000m
17. 户内(标准配置)
      可选配:户外(W)、户外防中等腐蚀(WF1)、户外防强腐蚀(WF2)、户内防中等
腐蚀(F1)、户内防强腐蚀(F2)、湿热带(TH)、干热带(TA)、户外湿热带(THW)、
户外干热带(TAW)

YBX3系列防爆电机详情参数表
电压:380V
频率:50Hz








电机型号额定功率
(kW)
额定电流
(A)
额定转速
(r/min)
效率%
(η%)
功率因数
(cosφ)
额定转矩
N.m
堵转转矩
额定转矩
Tst
TN
堵转电流
额定电流
Ist
TN
最大转矩
额定转矩
Tmax
TN
噪声 db(A)重量
(kg)
同步转速3000r/min
YBX3-80M1-20.751.7287580.70.832.52.36.82.36732
YBX3-80M2-21.12.4287582.70.833.72.37.32.36733
YBX3-90S-21.53.2289084.20.845.02.37.62.37239
YBX3-90L-22.24.6289085.90.857.32.37.82.37246
YBX3-100L-236.0289187.10.879.92.38.12.37657
YBX3-112M-247.8291488.10.8813.12.38.32.37768
YBX3-132S1-25.510.6293789.20.8817.92.28.02.38087
YBX3-132S2-27.514.2294090.10.8924.42.27.82.38093
YBX3-160M1-21120.6293091.20.8935.92.27.92.386136
YBX3-160M2-21527.9293091.90.8948.92.28.02.386144
YBX3-160L-218.534.4293792.40.8960.22.28.12.386155
YBX3-180M-22240.5294092.70.8971.52.28.22.389241
YBX3-200L1-23054.9295093.30.8997.12.27.52.392275
YBX3-200L2-23767.4295093.70.89119.82.27.52.392300
YBX3-225M-24581.7296094.00.89145.22.27.62.392420
YBX3-250M-25599.6296594.30.89177.22.27.62.393477
YBX3-280S-275135.2297094.70.89241.22.06.92.394640
YBX3-280M-290161.7297095.00.89289.42.07.02.394697
YBX3-315S-2110195.1297595.20.90353.12.07.12.2961060
YBX3-315M-2132233.6297595.40.90423.72.07.12.2961120
YBX3-315L1-2160279.4297595.60.91513.62.07.12.2991290
YBX3-315L2-2200348.6297595.80.91642.02.07.12.2991430
YBX3-355M-2250435.7298095.80.91801.22.07.12.21031749
YBX3-355L-2315549.0298095.80.911009.52.07.12.21032060
同步转速1500r/min
YBX3-80M1-40.551.4140080.70.753.82.36.32.35831
YBX3-80M2-40.751.8140082.50.755.12.36.52.35832
YBX3-90S-41.12.6144084.10.757.32.36.62.36143
YBX3-90L-41.53.6144585.30.759.92.36.92.36147
YBX3-100L1-42.24.8144086.70.8114.62.37.52.36456
YBX3-100L2-436.3144087.70.8219.92.37.62.36462
YBX3-112M-448.4144588.60.8226.42.37.72.36574
YBX3-132S-45.511.4145589.60.8236.12.07.52.37193
YBX3-132M-47.515.2145590.40.8349.22.07.42.371105
YBX3-160M-41121.5146091.40.8572.02.27.52.375141
YBX3-160L-41528.8146092.10.8698.12.27.52.375153
YBX3-180M-418.535.3147092.60.86120.22.27.72.376235
YBX3-180L-42241.8147093.00.86142.92.27.82.376255
YBX3-200L-43056.6147093.60.86194.92.27.22.379285
YBX3-225S-43769.6148093.90.86238.82.27.32.381360
YBX3-225M-44584.4148094.20.86290.42.27.42.381390
YBX3-250M-455102.7148094.60.86354.92.27.42.383490
YBX3-280S-475136.3148095.00.88484.02.26.72.386718
YBX3-280M-490163.2148095.20.88580.72.26.92.386816
YBX3-315S-4110199.1148595.40.88707.42.26.92.2931050
YBX3-315M-4132238.4148595.60.88848.92.26.92.2931210
YBX3-315L1-4160285.1148595.80.891029.02.26.92.2971290
YBX3-315L2-4200355.7148596.00.891286.22.26.92.2971400
YBX3-355M-4250439.6149096.00.901602.32.26.92.21011805
YBX3-355L-4315553.9149096.00.902019.02.26.92.21012130
同步转速1000r/min
YBX3-90S-60.752.093478.90.727.72.15.82.05742
YBX3-90L-61.12.894581.00.7311.12.15.92.05744
YBX3-100L-61.53.794582.50.7415.22.16.02.06149
YBX3-112M-62.25.496084.30.7421.92.16.02.06569
YBX3-132S-637.296485.60.7429.72.06.22.06983
YBX3-132M1-649.596586.80.7439.62.06.82.06991
YBX3-132M2-65.512.796588.00.7554.42.07.12.06999
